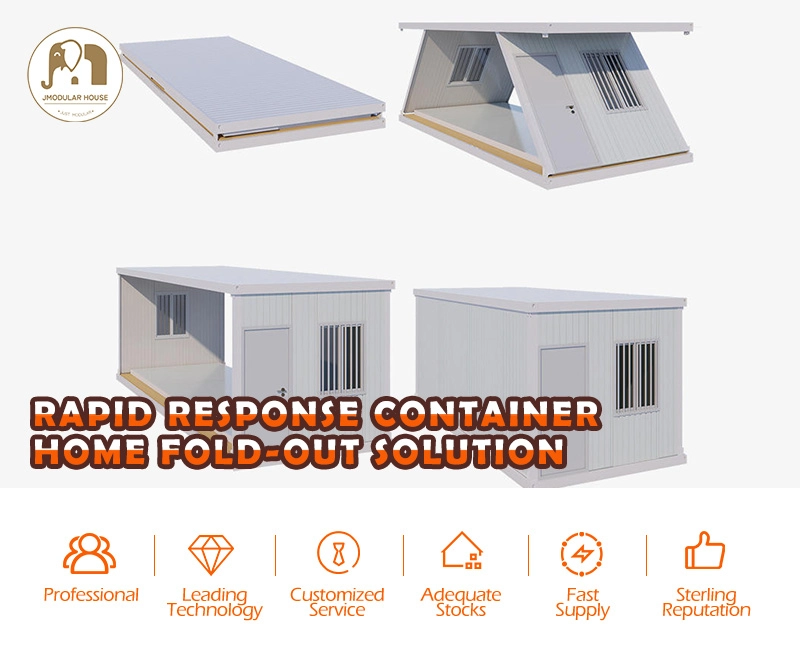

Rapid Response Container Home Fold-Out Solution
Feature of slide folding container
Military-Grade Deployment – Our rapid response container home achieves full functionality within 2 hours through patented fold-out mechanisms, outperforming conventional prefab modular building solutions by 300% in setup speed.
All-Climate Resilience – As certified emergency container lodging, its aerogel-insulated modular box for house units maintain -30°C to 50°C operational range during disasters.
Logistics Optimization – The Chinese fold out house design reduces shipping volume by 75% compared to static containers, with ISO-standard corner castings for global transport.
Multi-Agency Compliance – Pre-installed with FEMA/USAR-compatible utilities interfaces, ready for UN humanitarian missions or municipal disaster stockpiles.
The Rapid Response Container Home Fold-Out Solution deploys in just 2 hours, thanks to its military-grade hinge system and pre-engineered precision. As a rapid response container home, it’s purpose-built for emergencies, offering immediate shelter for up to 8 occupants. The unit’s foldable architecture slashes transportation costs by 70%, making it an ideal emergency container lodging option for disaster recovery operations. Crafted with hurricane-rated steel, it delivers unmatched durability in unpredictable conditions. Whether it’s a Chinese fold out house designed for international relief efforts or a modular box for house needed in remote regions, this system evolves into a fully functional prefab modular building—empowering NGOs and agencies to respond fast, save lives, and restore stability.
☛☛☛For more videos about portable cabins please click this link to JM’s Youtube
Material List
| Product Specifications | Folded Height | H=440mm 40HQ can load 10 sets |
| L*W*H(mm) | 5830mm*2500mm*2470mm Inner size: 5650mm*2320mm*2200mm |
|
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column | Specification 50mm*160mm Roller Beam Material Thickness 2.3mm Material Q235B |
| Roof Main Beam | Specification 50*160mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness=1.0mm 6 Pieces Material Q235B |
|
| Ground Main Beam | Height 50*140mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness 1.5mm 9 Pieces Material=Q235B |
|
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel Thickness=50mm Color White-Gray Free fall |
| Ground | Substrate | 18mm Fireproof Glass Magnesium Board |
| Wall | Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel Class B Fireproof |
| Color steel Plate | Panel Coler Streel Plate Thickness 0.4mm | |
| Door | Specification | Width×Height=840mm*1900mm |
| Material | Steel Door Concealed Lock |
|
| Window | Specification | 950mm*1100mm |
| Frame Material | Plastic Steel | |
| Glass | Single Layer Glass |
About us
——Foshan Jmodular Co., Limited——
Foshan Jmodular Co., Ltd, operating on a sprawling 45,000 square meter site with a remarkable annual output of 200,000 containers (500+ sets daily), stands as a comprehensive entity dedicated to the entire spectrum of container services. This includes design, development, production, sales, installation, operation, and customer service, effectively providing a seamless one-stop solution for box rental and manufacturing.
Through 20+ years of dedicated effort from its core team, the company has garnered an impressive 46 invention patents and utility model patents. Notably, its workshops boast state-of-the-art automated robotic arms, a strategic investment aimed at streamlining operations, reducing labor costs, and ultimately benefitting customers.
With a formidable presence spanning 29 factories, Foshan Jmodular Co., Ltd specializes in an array of product categories, ranging from flat pack container houses, detachable container houses, detachable flat pack container houses, folding container houses, slide folding container houses, expandable container houses, and portable toilets. Central to its ethos is a customer-centric approach, grounded in delivering green, safe, economical, and comfortable living experiences while advancing industry standards.
Backed by the support of automatic manipulators and a team of adept sales engineers, JM exudes confidence in its ability to meet customer demands across quality, quantity, and technical guidance realms.
