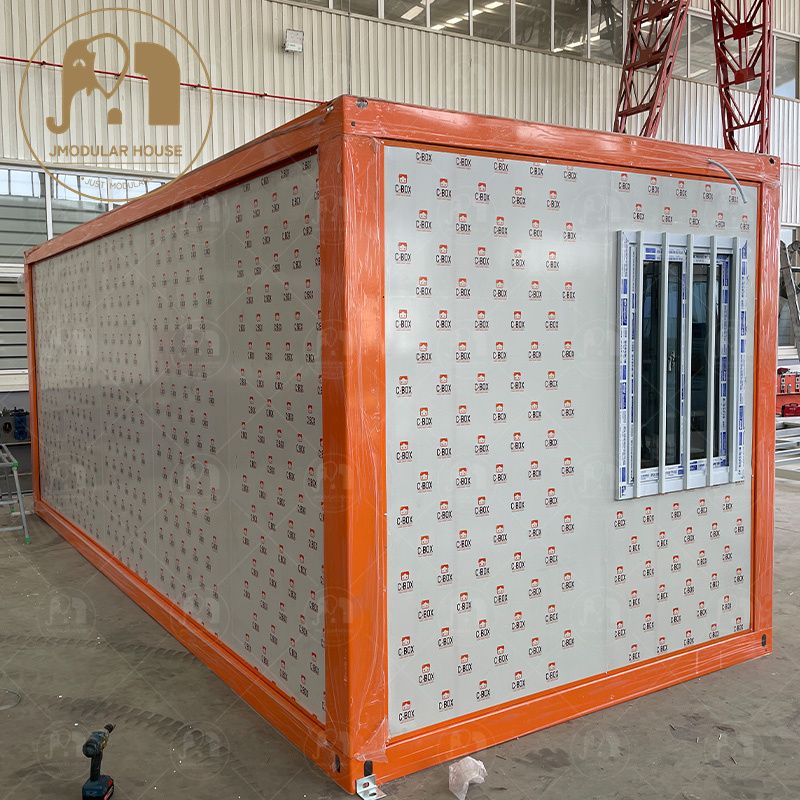

- Durable and eco-friendly materials: These container homes are made of durable and eco-friendly materials that can withstand harsh weather conditions and natural disasters.
- Foldable and modular space: They are foldable and modular, which means you can easily expand or reduce the space according to your needs.
- Easy installation and relocation: They are easy to install and dismantle, requiring minimal labor and tools. You can also relocate them to different sites without hassle.
- Variety of designs and customization: They offer a variety of designs and layouts to choose from, such as single or double rooms, open or closed kitchens, bathrooms, balconies, etc. You can also customize the interior and exterior decorations to suit your taste.
- Affordable and cost-effective: They are affordable and cost-effective, saving you up to 50% compared to traditional buildings. They also have low maintenance costs and energy consumption.

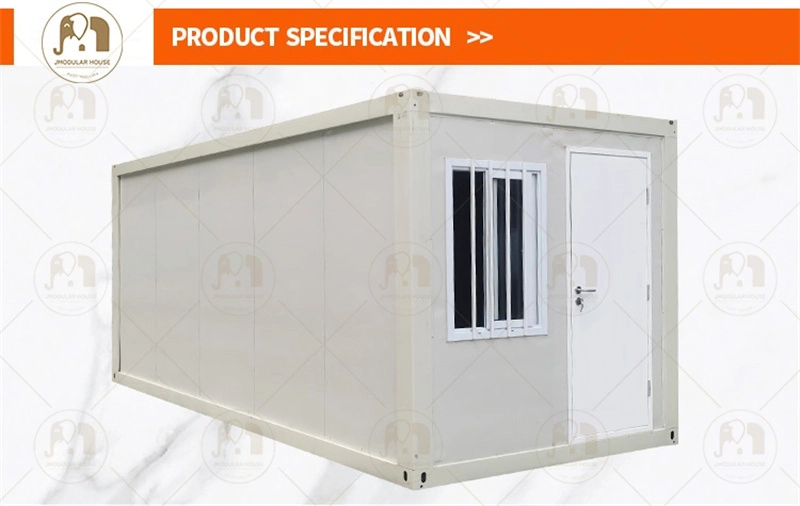

| Product Specifications | Folded Height | H=440mm 40HQ can load 10 sets |
| L*W*H(mm) | 5830mm*2500mm*2470mm | |
| Inner size: 5650mm*2320mm*2200mm | ||
| Roof Form | Flat Roof | |

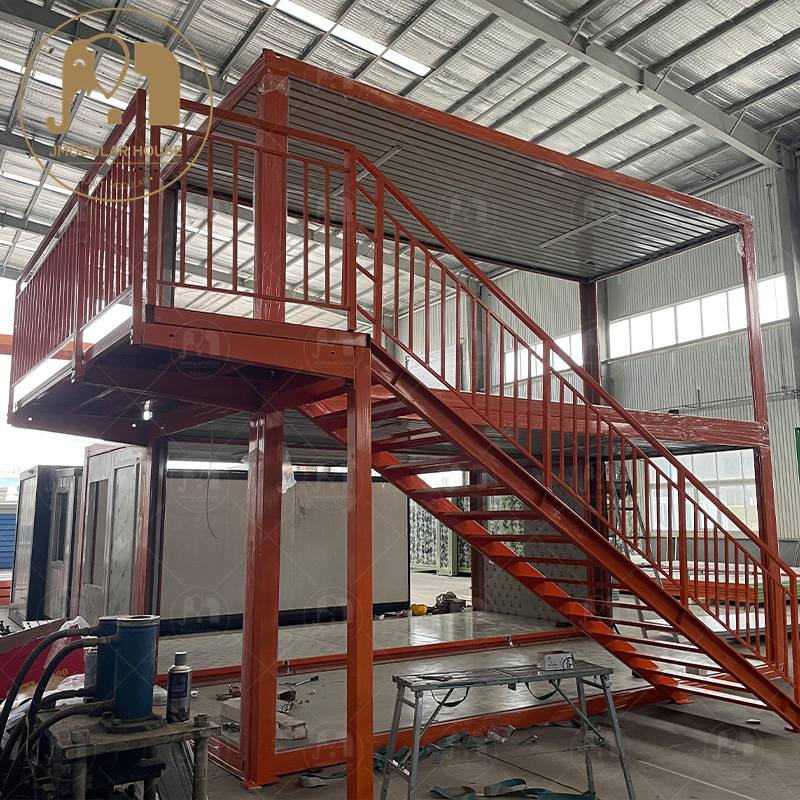

| Number Of Layers | ≤2 layers | |
| Structure | Column | Specification 50mm*160mm |
| Roller Beam | ||
| Material Thickness 2.3mm | ||
| Material Q235B | ||
| Roof Main Beam | Specification 50*160mm | |
| Roller Beam | ||
| Material Thickness 2.3mm | ||
| Material=Q235B | ||
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type | |
| Material Thickness=1.0mm | ||
| 6 Pices | ||
| Material Q235B | ||
| Ground Main Beam | Height 50*140mm | |
| Roller Beam | ||
| Material Thickness 2.3mm | ||
| Material=Q235B | ||
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type | |
| Material Thickness 1.5mm | ||
| 9 Pices | ||
| Material=Q235B | ||
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel |
| Thickness=50mm | ||
| Color White-Gray | ||
| Free fall | ||
| Ground | Substrate | 18mm Fireproof Glass Magnesium Board |
| Wall | Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel |
| Class B Fireproof | ||
| Color steel Plate | Panel Coler Streel Plate Thickness 0.4mm | |
| Door | Specification | Width×Height=840mm*1900mm |
| Material | Steel Door | |
| Concealed Lock | ||
| Window | Specification | 950mm*1100mm |
| Fram Material | Plastic Steel | |
| Glass | Single Layer Glass |

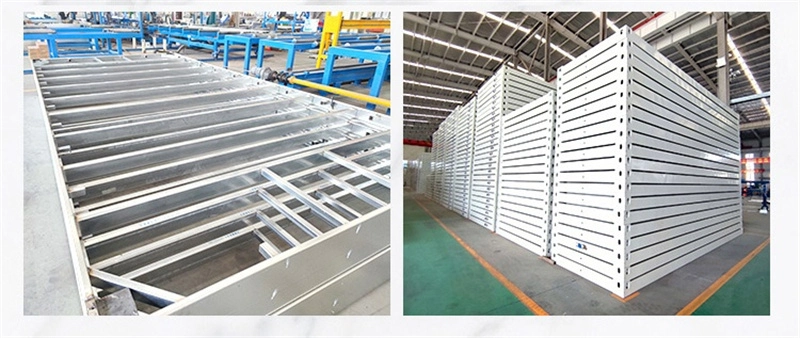

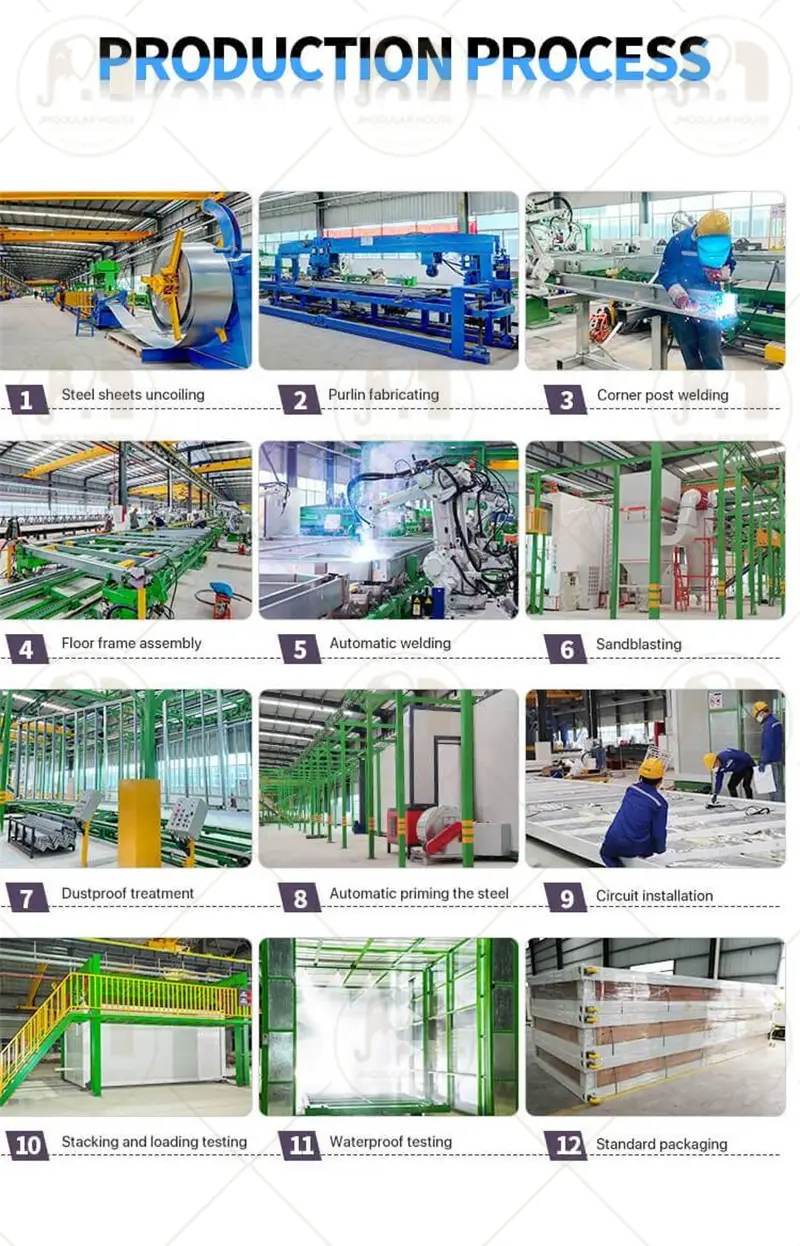

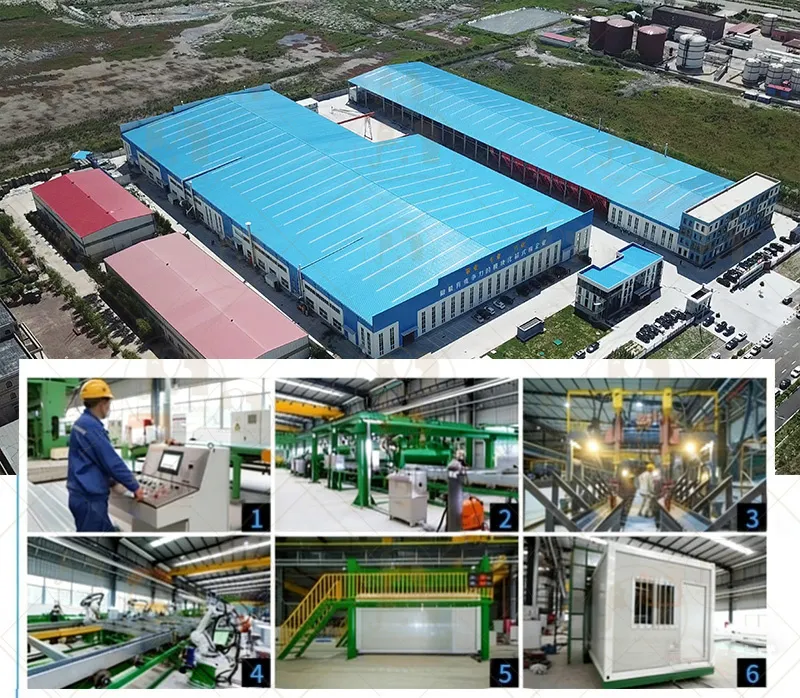

Prefabrication production
Foshan Jmodular Co., Ltd, operating on a sprawling 45,000 square meter site with a remarkable annual output of 200,000 containers (500+ sets daily), stands as a comprehensive entity dedicated to the entire spectrum of container services. This includes design, development, production, sales, installation, operation, and customer service, effectively providing a seamless one-stop solution for box rental and manufacturing.
Through 20+ years of dedicated effort from its core team, the company has garnered an impressive 46 invention patents and utility model patents. Notably, its workshops boast state-of-the-art automated robotic arms, a strategic investment aimed at streamlining operations, reducing labor costs, and ultimately benefitting customers.
With a formidable presence spanning 29 factories, Foshan Jmodular Co., Ltd specializes in an array of product categories, ranging from flat pack container houses, detachable container houses, detachable flat pack container houses, folding container houses, slide folding container houses, expandable container houses, and portable toilets. Central to its ethos is a customer-centric approach, grounded in delivering green, safe, economical, and comfortable living experiences while advancing industry standards.
Backed by the support of automatic manipulators and a team of adept sales engineers, JM exudes confidence in its ability to meet customer demands across quality, quantity, and technical guidance realms.
