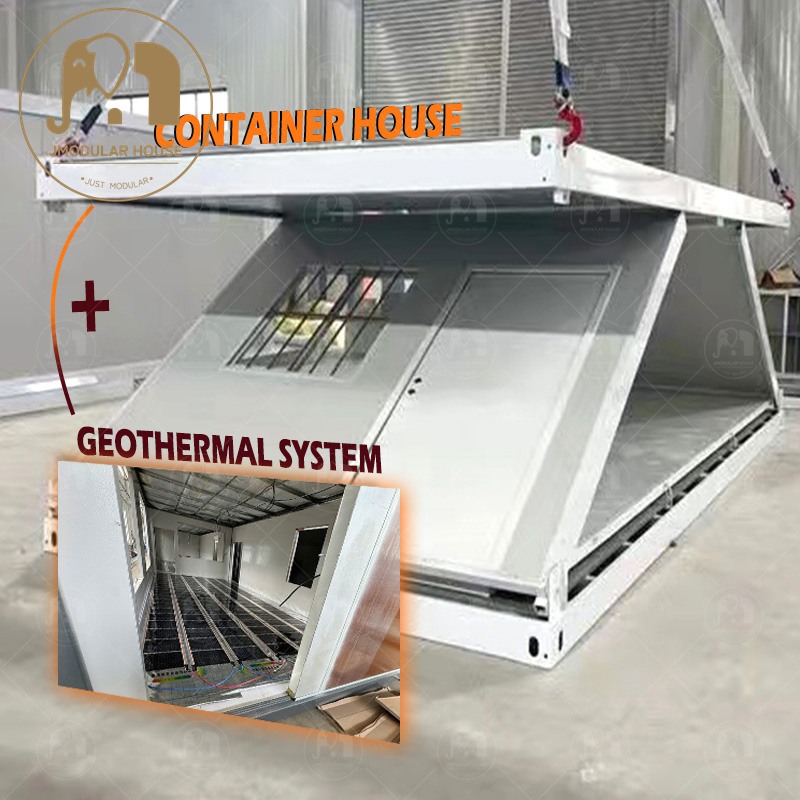

Fold Out Container Home with Sustainable Geothermal System
Feature of slide folding container
Space Efficiency: This fold out container home expands to provide ample living space while maintaining a compact, portable design, ideal for both temporary and long-term use.
Cost-Effective: With energy-efficient features and an integrated geothermal system, this home reduces utility costs, offering an affordable and sustainable solution for modern living.
Customizable and Flexible: Whether you need flat-pack accommodation units for short-term projects or a modern flat pack home for permanent living, this home can be tailored to meet your needs.
Durability and Quality: Crafted from robust materials, this luxury flat pack container ensures a high-quality, long-lasting living space that can withstand various environmental conditions.
Quick Setup: With easy assembly, the fold-out container home can be quickly set up and ready for use, saving time and installation costs compared to traditional building methods.

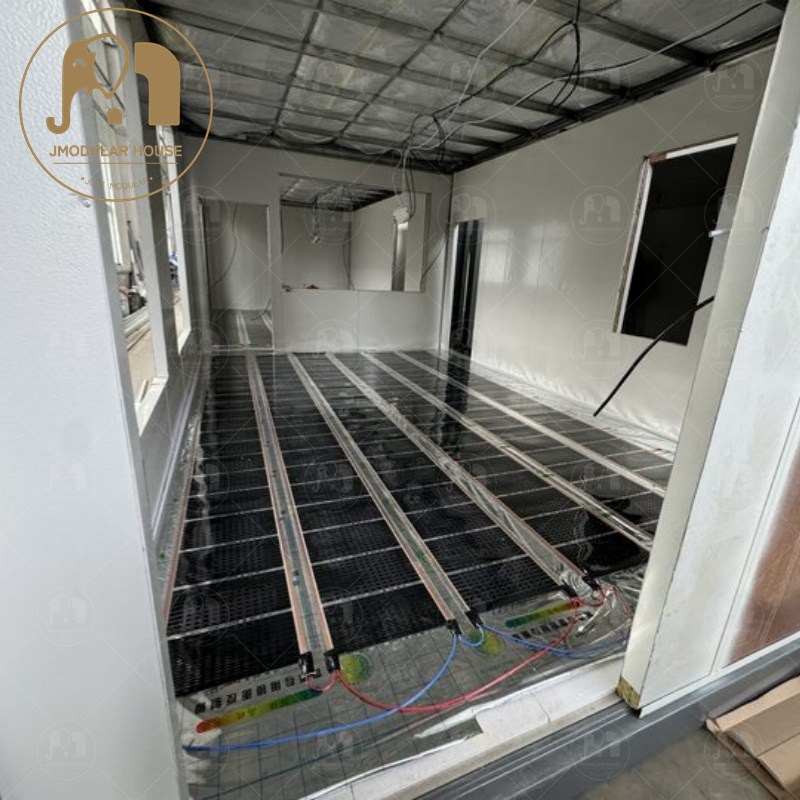

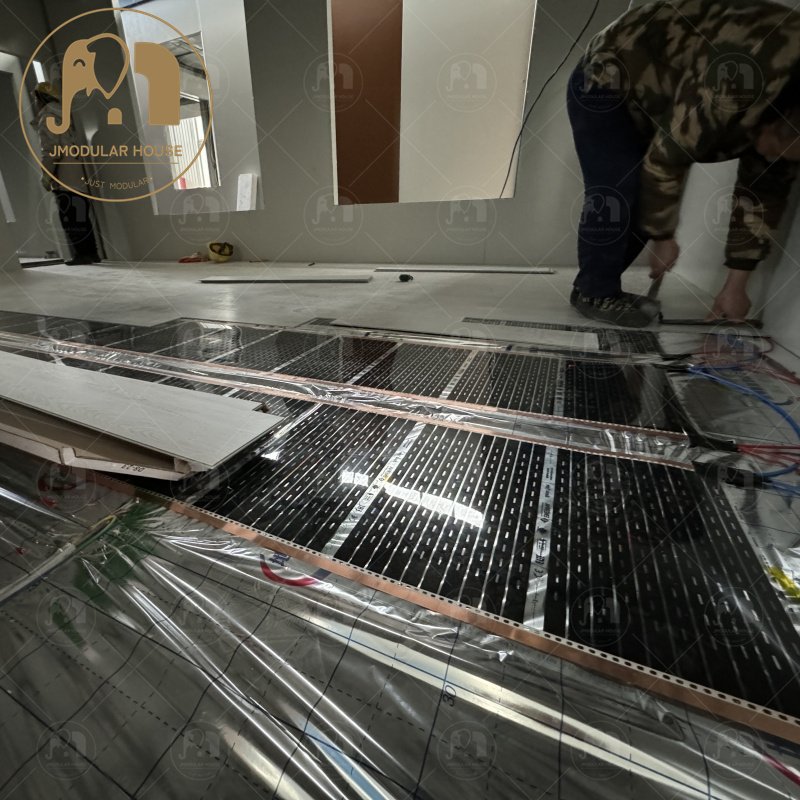

Fold-Out Container Home with Sustainable Geothermal System offers modern, eco-friendly living with energy-efficient heating for maximum comfort and efficiency. The luxury flat pack container is designed for easy expansion, allowing you to quickly adapt to changing needs. Perfect for sustainable living, the container house with the geothermal system provides year-round comfort while minimizing environmental impact. Whether you’re seeking a modern flat pack home or flat-pack accommodation units, this fold-out solution delivers both style and functionality for all lifestyles.
☛☛☛For more videos about portable cabins please click this link to JM’s Youtube
Material List
| Product Specifications | Folded Height | H=440mm 40HQ can load 10 sets |
| L*W*H(mm) | 5830mm*2500mm*2470mm Inner size: 5650mm*2320mm*2200mm |
|
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column | Specification 50mm*160mm Roller Beam Material Thickness 2.3mm Material Q235B |
| Roof Main Beam | Specification 50*160mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness=1.0mm 6 Pieces Material Q235B |
|
| Ground Main Beam | Height 50*140mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness 1.5mm 9 Pieces Material=Q235B |
|
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel Thickness=50mm Color White-Gray Free fall |
| Ground | Substrate | 18mm Fireproof Glass Magnesium Board |
| Wall | Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel Class B Fireproof |
| Color steel Plate | Panel Coler Streel Plate Thickness 0.4mm | |
| Door | Specification | Width×Height=840mm*1900mm |
| Material | Steel Door Concealed Lock |
|
| Window | Specification | 950mm*1100mm |
| Frame Material | Plastic Steel | |
| Glass | Single Layer Glass |
About us
——Foshan Jmodular Co., Limited——
Foshan Jmodular Co., Ltd, operating on a sprawling 45,000 square meter site with a remarkable annual output of 200,000 containers (500+ sets daily), stands as a comprehensive entity dedicated to the entire spectrum of container services. This includes design, development, production, sales, installation, operation, and customer service, effectively providing a seamless one-stop solution for box rental and manufacturing.
Through 20+ years of dedicated effort from its core team, the company has garnered an impressive 46 invention patents and utility model patents. Notably, its workshops boast state-of-the-art automated robotic arms, a strategic investment aimed at streamlining operations, reducing labor costs, and ultimately benefitting customers.
With a formidable presence spanning 29 factories, Foshan Jmodular Co., Ltd specializes in an array of product categories, ranging from flat pack container houses, detachable container houses, detachable flat pack container houses, folding container houses, slide folding container houses, expandable container houses, and portable toilets. Central to its ethos is a customer-centric approach, grounded in delivering green, safe, economical, and comfortable living experiences while advancing industry standards.
Backed by the support of automatic manipulators and a team of adept sales engineers, JM exudes confidence in its ability to meet customer demands across quality, quantity, and technical guidance realms.
