Fast build Flat Pack Foldable Container House
Feature of fast build flat pack foldable container house

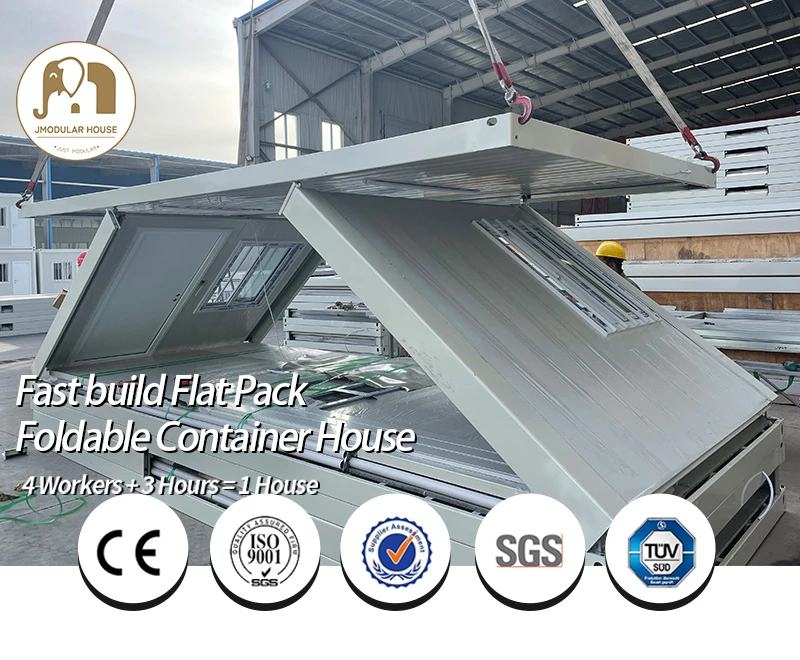

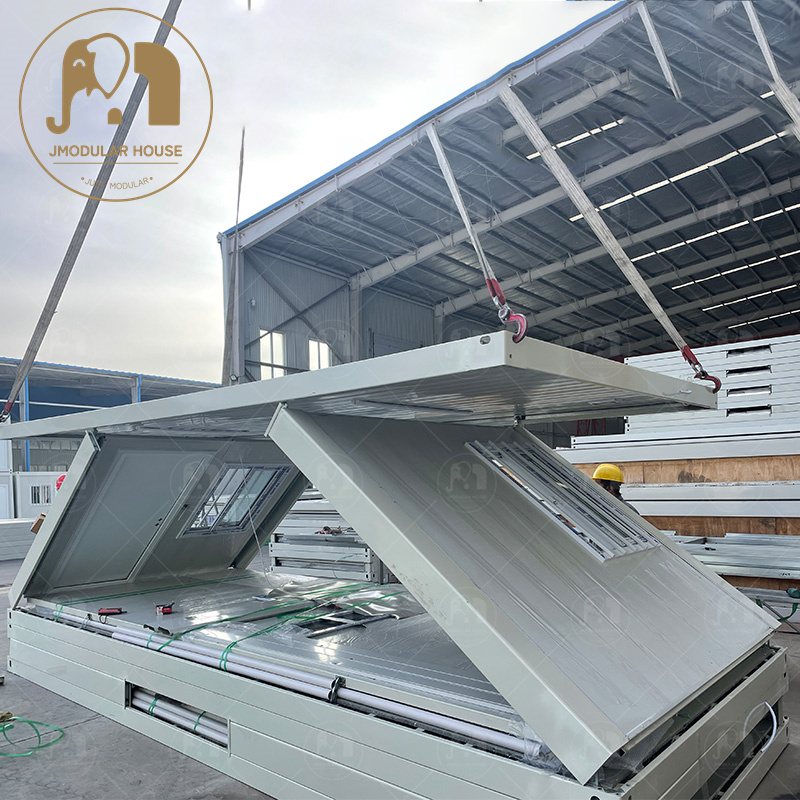

Fast to build, as it only takes a few minutes to set up a flat pack foldable container house on site. It can also be expanded or relocated easily if needed.
Cost-effective, as it saves money on transportation, installation, and maintenance. It also has a long lifespan and can be reused or recycled.
Eco-friendly, as it uses renewable materials and reduces waste and emissions. It also has features like insulation, ventilation, and solar panels that can improve energy efficiency and comfort.
Versatile, as it can be used for various purposes, such as living space, office, workshop, classroom, or clinic. It can also be customized to fit different styles and preferences.
Our collapsible container houses are also eco-friendly and affordable. They use recycled materials that reduce waste and carbon footprint. They are easy to transport and install, which lowers the construction cost and time. They are also durable and resistant to natural disasters such as earthquakes and typhoons.
The foldable fast build house is ideal for urban and rural areas, as they can fit any space and style. Whether you want a tiny house Philippines for a minimalist lifestyle, or a small house Philippines for a family of four, we have the perfect solution for you.
Material List

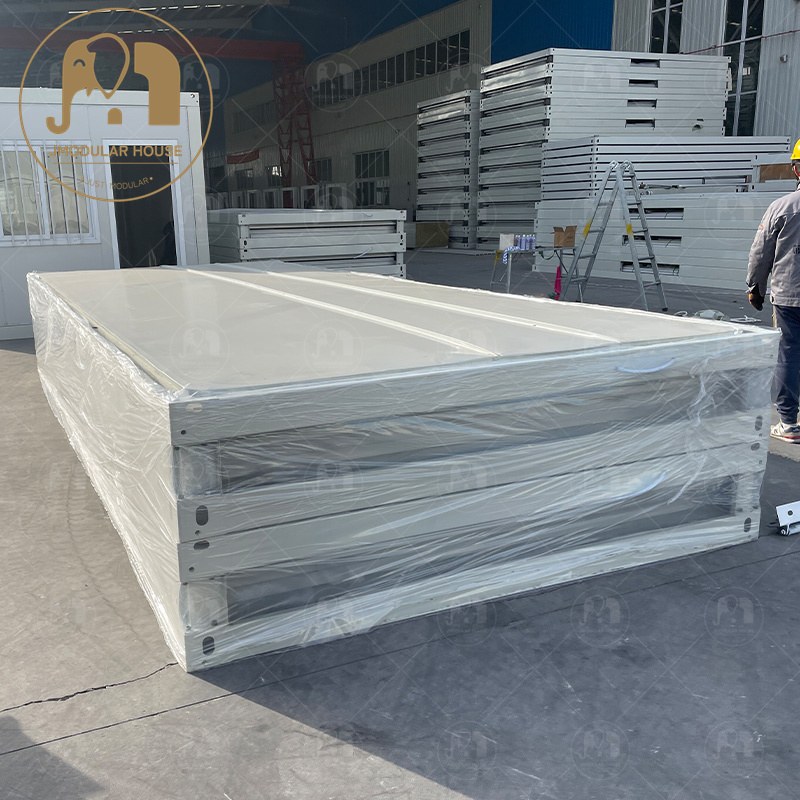

| Product Specifications | Folded Height | H=440mm 40HQ can load 10 sets |
| L*W*H(mm) | 5830mm*2500mm*2470mm Inner size: 5650mm*2320mm*2200mm |
|
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column | Specification 50mm*160mm Roller Beam Material Thickness 2.3mm Material Q235B |
| Roof Main Beam | Specification 50*160mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness=1.0mm 6 Pieces Material Q235B |
|
| Ground Main Beam | Height 50*140mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness 1.5mm 9 Pieces Material=Q235B |
|
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel Thickness=50mm Color White-Gray Free fall |
| Ground | Substrate | 18mm Fireproof Glass Magnesium Board |
| Wall | Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel Class B Fireproof |
| Color steel Plate | Panel Coler Streel Plate Thickness 0.4mm | |
| Door | Specification | Width×Height=840mm*1900mm |
| Material | Steel Door Concealed Lock |
|
| Window | Specification | 950mm*1100mm |
| Frame Material | Plastic Steel | |
| Glass | Single Layer Glass |
About us
——Foshan Jmodular Co., Limited——
Foshan Jmodular Co., Ltd, operating on a sprawling 45,000 square meter site with a remarkable annual output of 200,000 containers (500+ sets daily), stands as a comprehensive entity dedicated to the entire spectrum of container services. This includes design, development, production, sales, installation, operation, and customer service, effectively providing a seamless one-stop solution for box rental and manufacturing.
Through 20+ years of dedicated effort from its core team, the company has garnered an impressive 46 invention patents and utility model patents. Notably, its workshops boast state-of-the-art automated robotic arms, a strategic investment aimed at streamlining operations, reducing labor costs, and ultimately benefitting customers.
With a formidable presence spanning 29 factories, Foshan Jmodular Co., Ltd specializes in an array of product categories, ranging from flat pack container houses, detachable container houses, detachable flat pack container houses, folding container houses, slide folding container houses, expandable container houses, and portable toilets. Central to its ethos is a customer-centric approach, grounded in delivering green, safe, economical, and comfortable living experiences while advancing industry standards.
Backed by the support of automatic manipulators and a team of adept sales engineers, JM exudes confidence in its ability to meet customer demands across quality, quantity, and technical guidance realms.
