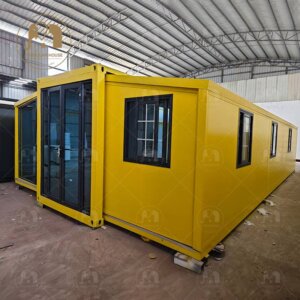

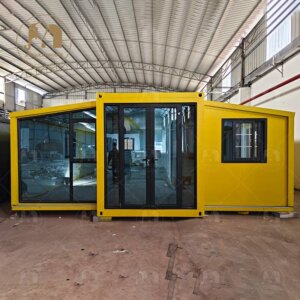

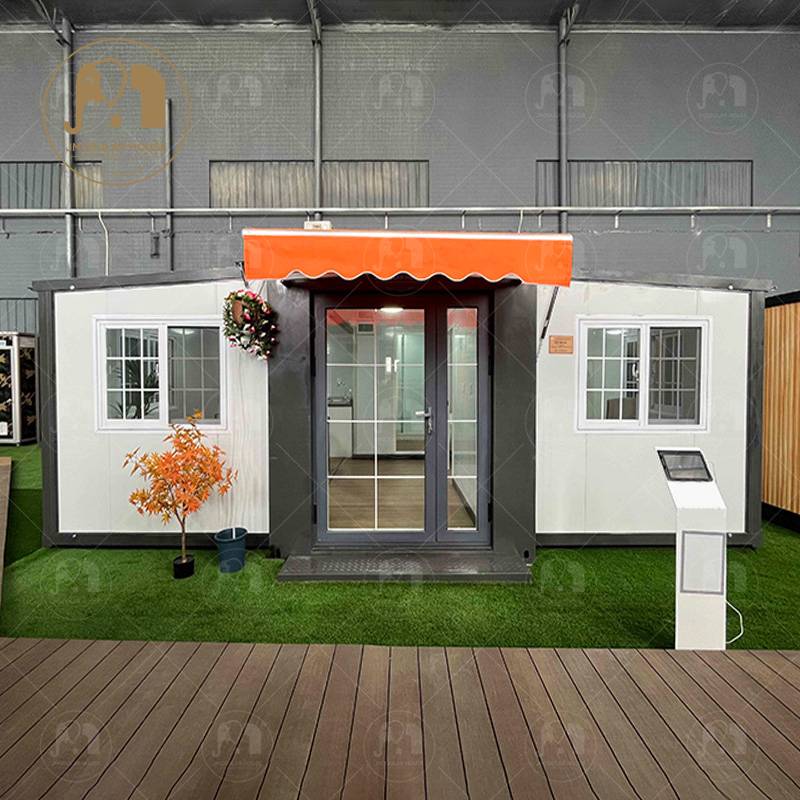

Double Wing House Expandable Prefab Container Solution
Feature of the double wing house:
Quick Assembly and Disassembly: The Double Wing House can be set up or taken down swiftly, making it ideal for rapidly changing circumstances or emergency situations.
Spacious and Customizable Design: This expandable prefab container house offers a larger living space than standard containers, with the option to modify the layout to suit specific needs.
Portable and Easy to Relocate: As a foldable house Australia solution, the Double Wing House can be easily transported and relocated, ensuring flexibility in living arrangements.
Durability and Weather Resistance: Built with high-quality materials, these prefab expandable containers are designed to withstand harsh weather conditions, providing long-lasting comfort and safety.
Energy Efficient and Eco-friendly: Custom prefab homes like the Double Wing House are built with sustainable materials, helping reduce energy consumption and environmental impact.
Cost-effective: This solution is more affordable than traditional housing, offering a budget-friendly option for those seeking modern, customizable living spaces.
☞☞☞Click this link to view more videos from JM’s YouTube!
Material List
| Steel Structure | List | Part Name | Specification |
| 1 | Steel column | Steel panel 3mm thickness bend part | |
| 2 | Main bottom beam | 150*75*3.0mm | |
| 3 | Main top beam | 12#*6mm | |
| 4 | Secondary beam | 80*80*2.0mm | |
| 5 | Panel | Galvanized steel corrugated sheet 1.0mm | |
| 6 | Bottom frame purlin | 80*40*2.0mm | |
| Panel, Door, and Window | 7 | Ceiling | 1150*50*0.326mm double-side Choi foam sandwich panel |
| (White and grey) | |||
| 8 | External wall panel | Bending piping 2.5mm+1150*50*0.326mm 0.326mm double side Choi foam sandwich panel | |
| (White and grey) | |||
| 9 | Floor | Fireproof panel 15mm (yellow) +PVC grain board | |
| 10 | Door panel | 304 SS door (primary colors)
W*H: 1520mm*2200mm, 1 set |
|
| 11 | Sliding window | Aluminum alloy sliding window (white)
W*H: 930mm*1200mm, 8 sets |
