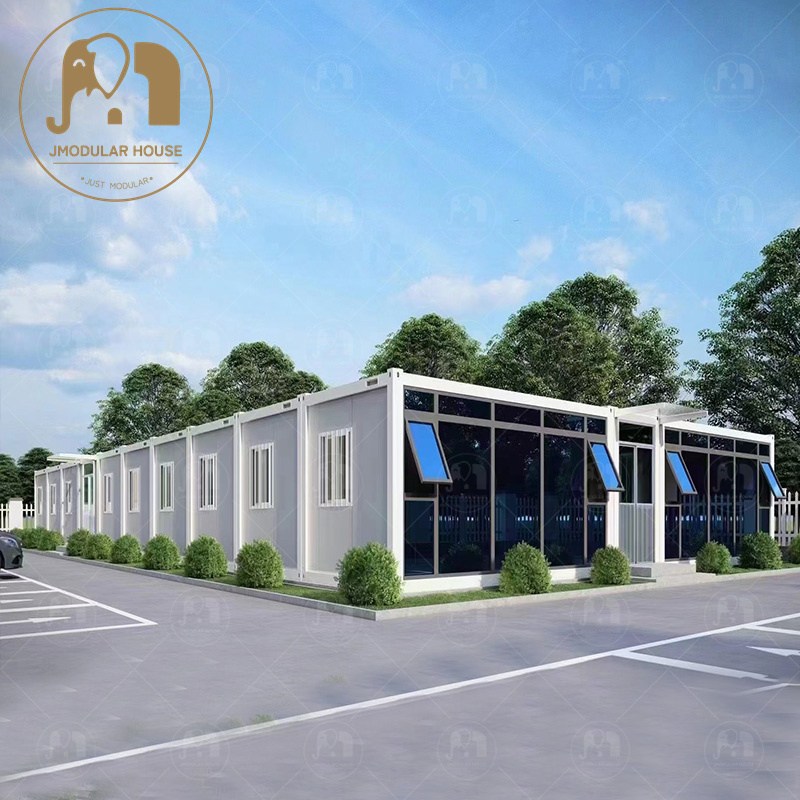

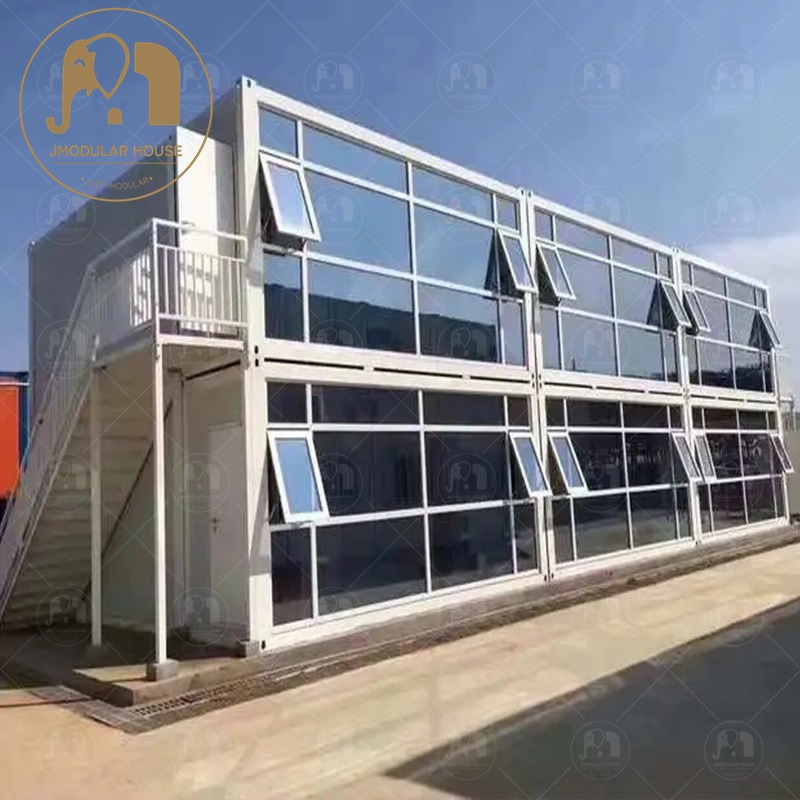

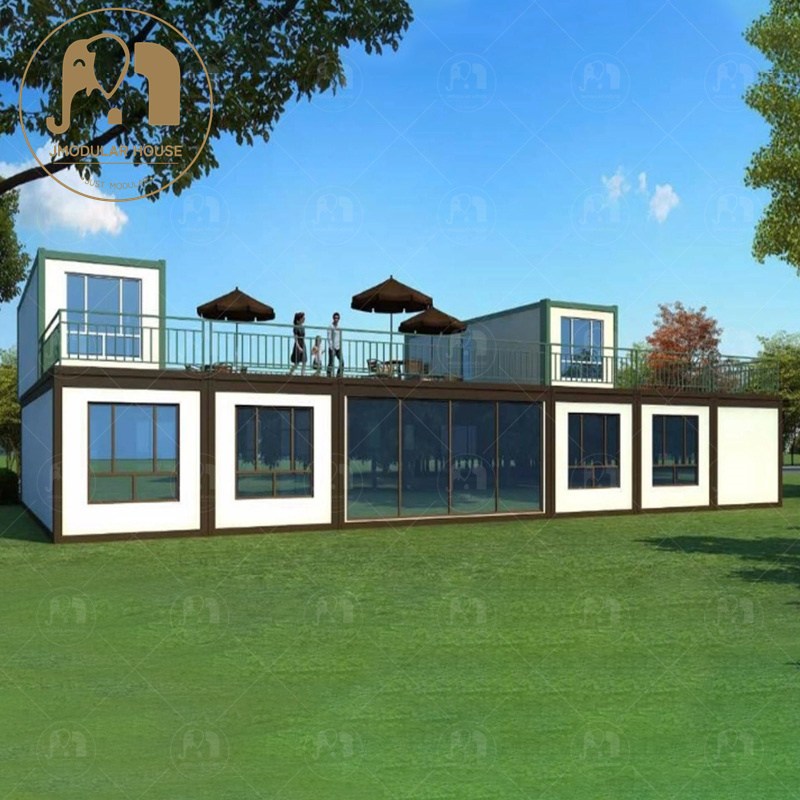

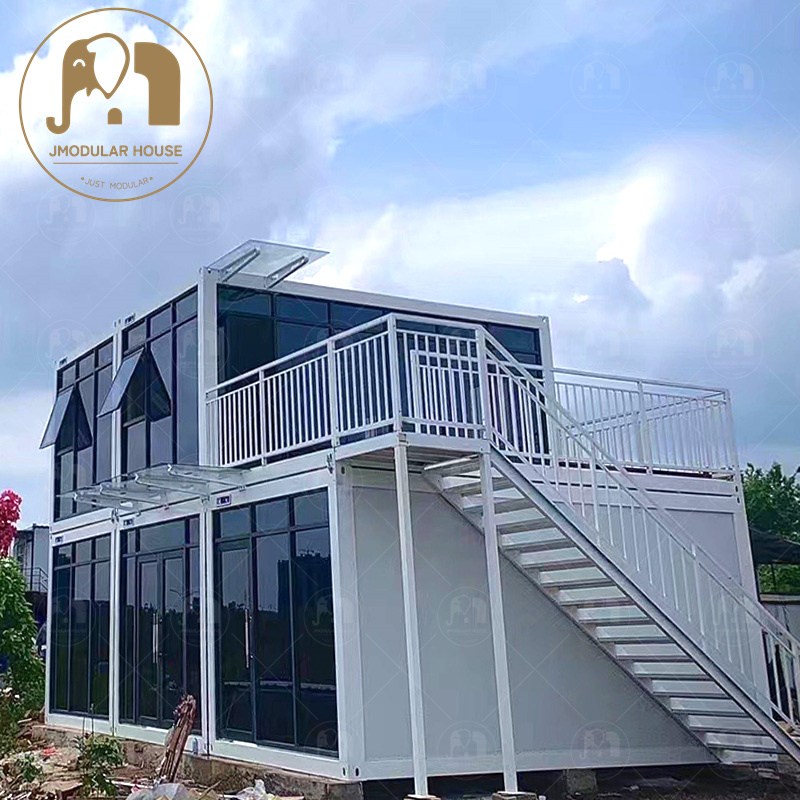

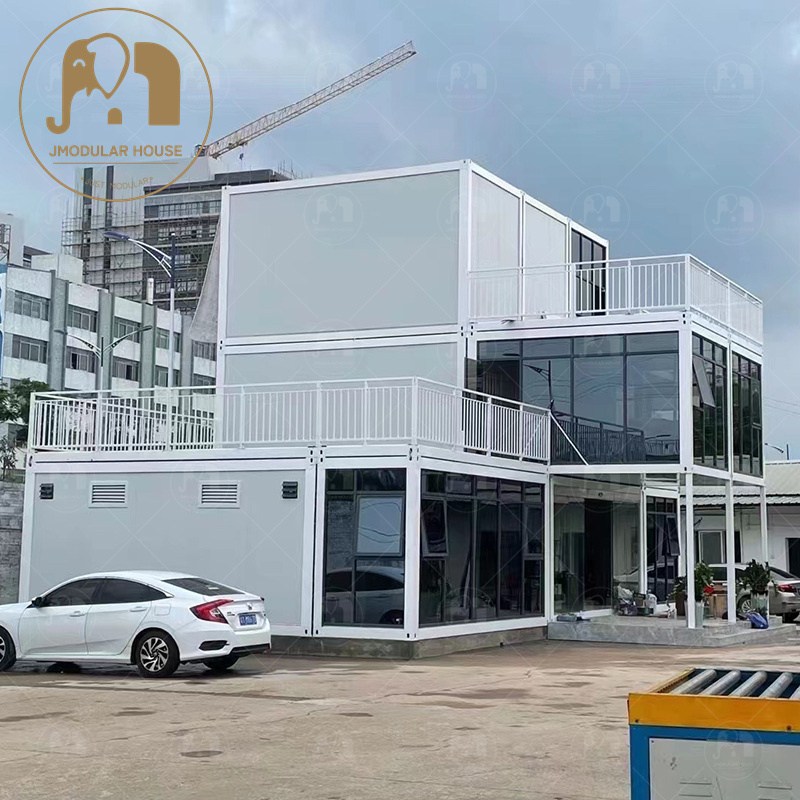

20ft Glass Wall Container House—Foldable, Pre Manufactured
Feature of slide folding container
Sustainability: With its foldable structure, this glass wall container house is designed for eco-friendly use, reducing construction waste and energy consumption.
Durability: The high-quality materials used in pre manufactured tiny homes ensure long-lasting performance, making it a reliable option for both short-term and long-term living.
Modern Design: Offering a blend of stylish glass walls and functional design, this container folding house provides natural light and an open, airy environment.
Cost-Effective: As a premade container home for sale, it provides a budget-friendly alternative to traditional housing, saving time and labor costs in construction.
Versatile Use: Suitable for residential or commercial needs, the 20ft glass wall container house offers flexible living or office space options for various applications.
The 20ft glass wall container house offers a foldable, pre-manufactured design, combining modern aesthetics with practicality. Whether you need a stylish living space or a temporary office, this pre manufactured tiny home provides flexibility, fast assembly, and cost-effective housing solutions. With a sleek, glass-walled design, it allows for abundant natural light, creating a comfortable, functional environment. Ideal for both permanent and temporary uses, the 20ft container house place is an excellent choice for those seeking a modern, adaptable home or workspace.
☛☛☛For more videos about portable cabins please click this link to JM’s Youtube
Material List
| Product Specifications | Folded Height | H=440mm 40HQ can load 10 sets |
| L*W*H(mm) | 5830mm*2500mm*2470mm Inner size: 5650mm*2320mm*2200mm |
|
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column | Specification 50mm*160mm Roller Beam Material Thickness 2.3mm Material Q235B |
| Roof Main Beam | Specification 50*160mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness=1.0mm 6 Pieces Material Q235B |
|
| Ground Main Beam | Height 50*140mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness 1.5mm 9 Pieces Material=Q235B |
|
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel Thickness=50mm Color White-Gray Free fall |
| Ground | Substrate | 18mm Fireproof Glass Magnesium Board |
| Wall | Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel Class B Fireproof |
| Color steel Plate | Panel Coler Streel Plate Thickness 0.4mm | |
| Door | Specification | Width×Height=840mm*1900mm |
| Material | Steel Door Concealed Lock |
|
| Window | Specification | 950mm*1100mm |
| Frame Material | Plastic Steel | |
| Glass | Single Layer Glass |
